Wednesday, 4 May 2011

Jim Leggitt

Click HERE to view Jim Legitt's site. DOnt miss his excellent NPR works and workflow.
















Here you can see samples of Jim's workflow with SKetchUp. He also wrote a book entitle " Drawing shortcuts" Click HERE for more information about this book.












SketchUp Overlay and Trace Method

050311 Jim Leggitt Blog-03

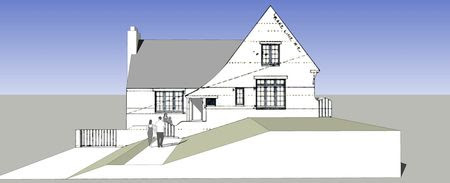

Step 1- SketchUp Massing Model. The subject was a simple residential design from the 1930’s. I built a basic SketchUp model using floor plans and elevations that I scanned from a classic book on residential design. I exported an eye-level perspective scene and printed it in color on 8.5x11” paper.

050311 Jim Leggitt Blog-04

Step 2 - Overlay Drawing. One of my students, Marc Applebaum, AIA sketched over the print with a red pencil to block out the car and other elements, then drew over the scene with a Pilot Fineliner pen on a sheet of tracing paper. His pen and ink drawing captured the basic house model view and added site detail such as walls, steps, trees and shrubs.

050311 Jim Leggitt Blog-05

Step 3 - Final Color. Marc completed the drawing with a wash of Chartpak AD markers and added texture with Prismacolor pencils. He built up shadows and contrast with a dark cool gray marker. The overlay drawing took less than 60 minutes from initial redline mockup to final coloring!


SketchUp Composite Drawing Method
050311 Jim Leggitt Blog-06

Detailed SketchUp Model. More developed than the overlay and trace massing model, this model of the same 1930’s house was refined with materials and components. Roofing material was selected, 3D tree components added and a classic car imported from SketchUp 3-D Warehouse. I established an identical view as the previous drawing exercise, exported a high resolution jpeg, printed the image on 11x17” bond paper and drew directly onto the color print with Prismacolor pencils and Chartpak AD markers.

050311 Jim Leggitt Blog-07

Final Composite Drawing. The print from my SketchUp model was first colored with very light Chartpak AD markers and then over-traced with a black Prismacolor pencil. The final image was scanned at 300dpi.

050311 Jim Leggitt Blog-08

Waterfront Composite Drawing. This semi-detailed SketchUp “stage set” model was constructed with the goal of establishing a single perspective view in which a  composite drawing was developed. The model view was exported into SUPodium to render glass and water reflections. The final SketchUp view was lightened in Photoshop and printed 11x17” on coated bond paper.





Step 1 - Ink Line Delineation. Using a Pilot Fineliner pen, Marc sketched directly onto the print and illustrated the different buildings, people, landscaping and signage. To emphasize distance, he concentrated detail in the foreground and faded his linework in the distance. Much of the original SketchUp model view was untouched on the left side of the scene.



050311 Jim Leggitt Blog-10

Step2 - Final Composite Color. Marc added Chartpak AD markers and Prismacolor pencils directly onto the print and completed the drawing in less than 90 minutes. This “hybrid” approach to drawing combines detailed SketchUp models with a hand drawing process which results in very effective presentation “Tradigital Drawings” - the merging of traditional hand drawing techniques with digital models.
